Scatter-gather ​

Scatter-gather is a paradigm of parallel computing whereby a computation is split into smaller, independent pieces, those pieces "scattered" across multiple, parallel executions, and the results each execution is "gathered" into a single result. This is incredibly useful when attempting to optimize the speed of computations that don't depend on one another. Some examples of this design pattern in practice include (a) scattering of a complex analysis for a single sample across multiple, independent chromosomes and merging the results together or (b) scattering the generation of independent gVCFs from multiple samples, followed by a gathering joint genotyping step employed by the GATK.

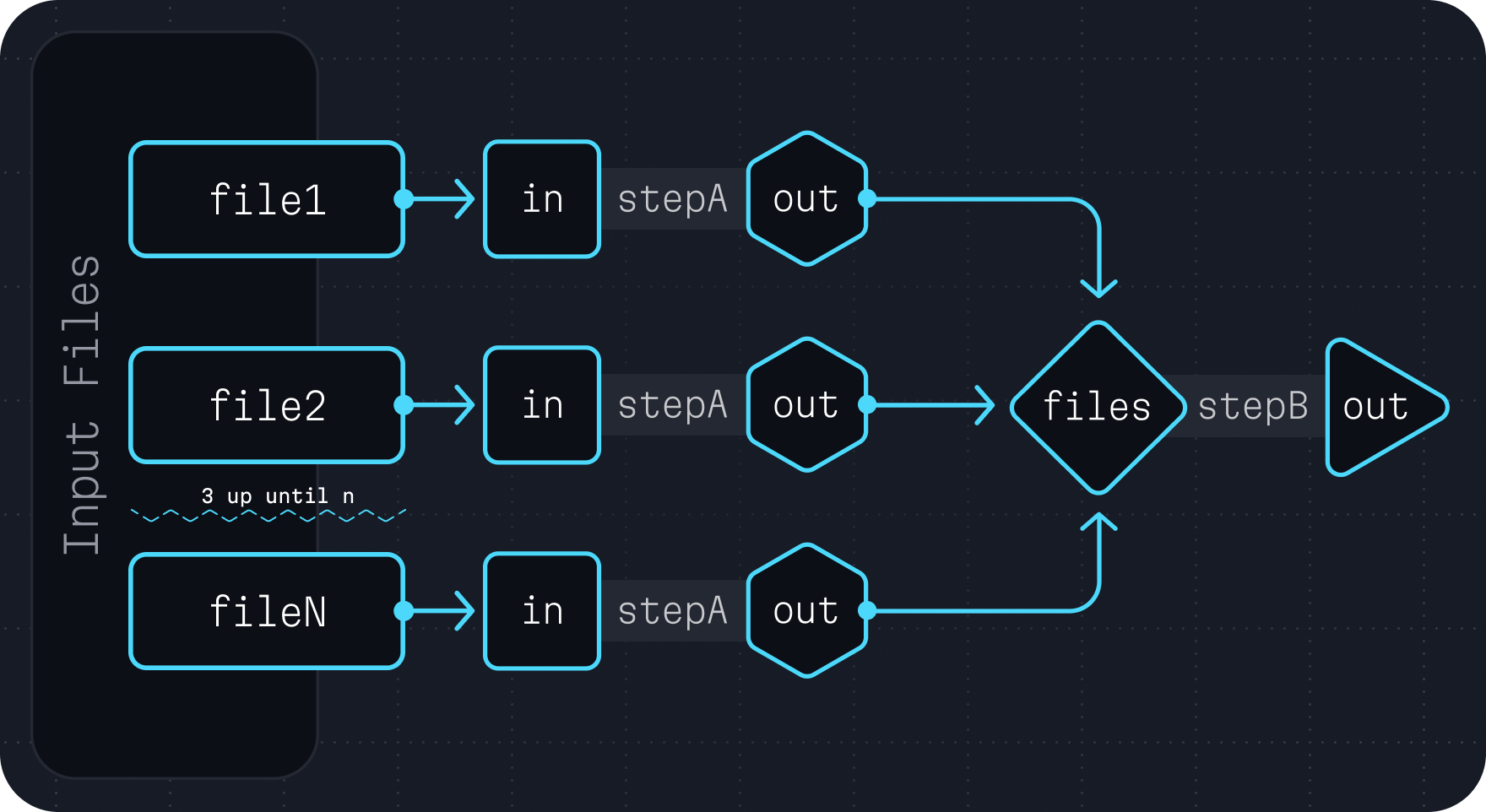

A diagram showing two steps: and . Multiple instances of are called—one instance for each input file. Each of these produces an output (). is then called once accepting all of these from each call and combining the results. This, in essence, is the power of the scatter-gather paradigm.

This often takes a form similar to the following example.

wdl
# ... task definitions ...

workflow run {
  inputs {
    Array[File] files
  }

  # Perform `stepA` for each of the inputs in parallel (scatter).
  scatter(file in files) {
    call stepA { input: in = file }
  }

  # Collect the results from the scatter (gather).
  #
  # Note that the outputs from `stepA` are automatically coerced
  # into an `Array` that you can pass in elsewhere.
  call stepB { input: files = stepA.out }
}
