Linear chaining

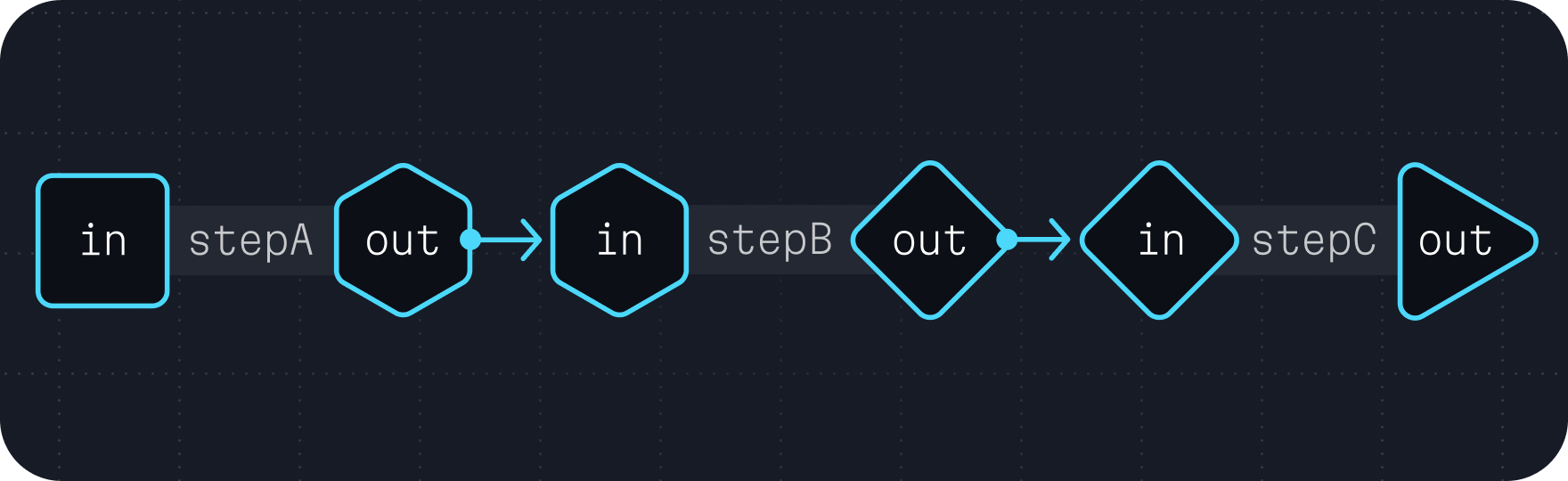

The simplest way to chain tasks together in a workflow is a linear chain, whereby the outputs of one tasks feeds into the input of the next task. The diagram below show the linear chaining of three tasks in a row.

WDL allows this to be expressed simply, as the output of any task (declared in the output section of the task) may be used as an input to another task when it is called (via the call directive).

# ... task definitions ...

workflow run {
  # Run the first task.
  call stepA {}

  # Run `stepB`, connecting the `in` input to `stepA`'s `out` output.
  call stepB { input: in = stepA.out }

  # Run `stepC`, connecting the `in` input to `stepB`'s `out` output.
  call stepC { input: in = stepB.out }
}

This works because each task creates a scope of the same name as the task that contains that tasks outputs. Similarly, when using a call directive, you can set values of the inputs within that task's scope.

A full example

For a more complete picture, here is a workflow that actually computes π by getting the constant from Python.

version 1.2

# (1) We write a task to calculate π.
task calculate_pi {
  command <<<
    python3 -c "import math; print(math.pi)"
  >>>

  output {
    # (a) π is output as an _output_ of this task here.
    # It's read from standard input and parsed as a `Float`.
    Float pi = read_float(stdout())
  }
}

# (2) We write a task that takes in the output from the
# previous task and uses it to compute the area of a circle.
task calculate_circle_area {
  input {
    # (a) π is taken as an input here.
    Float pi
    Float radius = 5.0
  }

  command <<<
    bc -l <<< "2 * ~{pi} * ~{radius}"
  >>>

  output {
    Float area = read_float(stdout())
  }
}

# (3) We write a workflow that linearly chains the two tasks
# by connecting the output of the first task to the input of
# the second task.
workflow hello {
  # (a) π is calculated in this step.
  call calculate_pi

  # (b) the output from the `calculate_pi` step is passed to
  # the input of the `calculate_circle_area` input here.
  call calculate_circle_area { input: pi = calculate_pi.pi }

  output {
    Float area = calculate_circle_area.area
  }
}

# Now, π will first be calculated by calling `calculate_pi`
# and, once that has completed, `calculate_circle_area` will
# be called using the calculated constant.
